Thermal transfer ribbon is one of those consumables that gets selected by habit — whoever ordered it last time is usually whoever orders it this time. If the labels print and the barcodes scan, the ribbon question stays closed. The problem is that "prints and scans" is a low bar. A wax ribbon on a coated paper label will print and scan just fine the day it's applied. Three days later in a warehouse where a forklift clipped the shelf, or a week later when a shipping label went through a humid loading dock, the story may be different.

The three ribbon formulations — wax, wax-resin, and full resin — differ at the molecular level in ways that translate directly into real-world performance differences: how hard the printed ink layer is, how resistant it is to heat and solvents, how well it fuses to different label facestocks, and how it responds to abrasion. Understanding those differences is what allows you to make a deliberate choice rather than a habitual one — and to catch the mismatch before it becomes a quality escape or a field failure.

How Thermal Transfer Ribbon Actually Works

Before comparing ribbon types, it helps to understand what happens during the print event itself — because the differences between ribbon formulations are differences in what the ink layer does when heat is applied and what it does afterward.

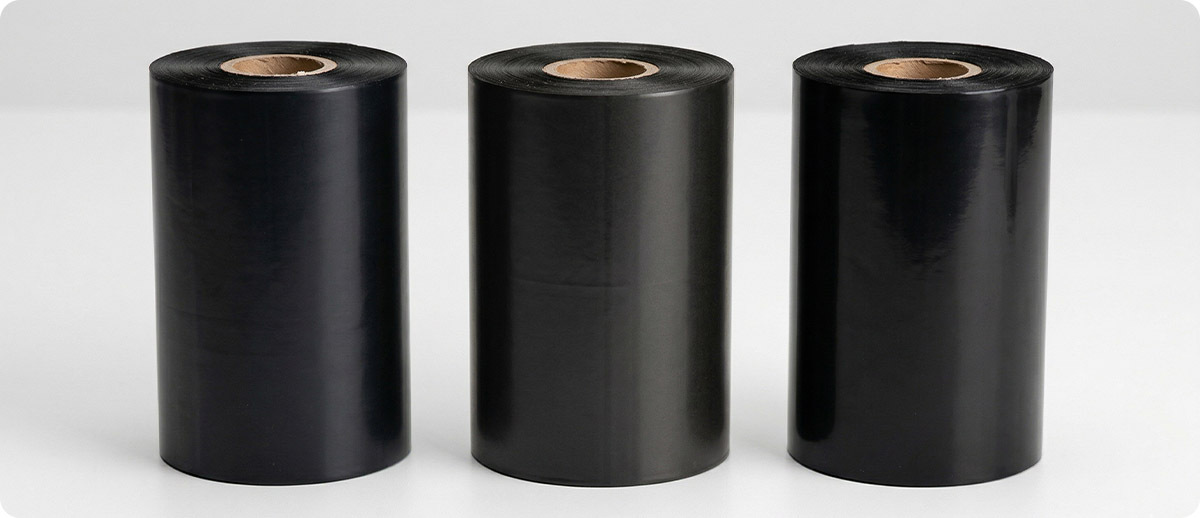

Thermal transfer ribbon is a polyester film — typically 4–6 microns thick — coated on its underside with an ink formulation. The ink layer has three primary components: colorants (carbon black for standard black ribbons), binders that determine the ink's physical properties, and release agents that control how cleanly the ink separates from the film carrier. When the printhead fires a heating element against the ribbon, the ink layer in that zone melts and transfers to the label facestock beneath it, where it cools and solidifies to form the printed image.

The key variable is the binder chemistry. The binder is what gives the ink layer its physical properties after it cools — its hardness, its melting point, its resistance to solvents and abrasion, and its compatibility with different label facestock materials. Wax binders, resin binders, and mixtures of the two produce dramatically different performance profiles from what is otherwise the same basic printing process.

Wax Ribbon: High Volume, Paper Labels, Controlled Environments

The Chemistry

Wax ribbons use natural or synthetic wax compounds — paraffin, carnauba, or blends — as the primary binder. Wax has a low melting point, which means it transfers at low printhead temperatures and produces sharp, dense black images at high print speeds. It is also the softest ink layer of the three formulations after cooling, which is both its strength and its limitation.

Because wax is relatively soft, it bonds well to paper facestocks — the porous, slightly rough surface of coated paper provides mechanical interlocking with the wax as it solidifies. The same softness means wax images can be smeared by fingernails, scratched by abrasive contact, and dissolved by many common solvents including alcohol and cleaning agents. Heat above roughly 150°F (65°C) can cause wax ink to soften and smear or offset onto adjacent surfaces.

What Wax Ribbon Is Right For

Wax is the correct choice for high-volume paper label applications in controlled or lightly demanding environments. The economic case for wax is strong: lower cost per label, higher ribbon yield relative to resin options at equivalent lengths, and the ability to run at higher print speeds without quality degradation. When the label lives a short life — a shipping label that ships in a day, a receiving label that gets filed within a week, a retail shelf label in a climate-controlled store — wax delivers everything required at the lowest cost.

Appropriate wax applications: Shipping and receiving labels on paper stock, warehouse pick labels that are handled briefly and discarded, retail price and shelf labels in indoor environments, general inventory tracking labels on paper in climate-controlled facilities, office labeling and general identification.

Where wax fails: Any application involving chemical exposure (cleaning agents, solvents, oils), sustained abrasion, outdoor exposure, temperatures above 150°F, or labeling on synthetic facestocks (polyester, polypropylene). Wax does not bond well to the smooth, non-porous surface of synthetic label materials — images appear dull, scratch easily, and may rub off entirely.

Wax-Resin Ribbon: The Versatile Middle Ground

The Chemistry

Wax-resin ribbons combine wax and resin binders in a single ink layer formulation. The ratio of wax to resin is what defines where a specific wax-resin ribbon sits on the performance spectrum — more wax means better paper compatibility and lower cost, more resin means better chemical and abrasion resistance and higher heat tolerance. Most wax-resin ribbons are engineered to perform well on both coated paper and matte synthetic label materials, which is their defining operational advantage over pure wax.

The resin component in a wax-resin formulation raises the ink layer's hardness and melting point relative to pure wax. The result is an ink surface that resists light abrasion, holds up to moderate chemical exposure (alcohol, light cleaning solutions), and maintains image integrity at higher temperatures. The wax component keeps the print temperature manageable and the per-roll cost lower than full resin, while also allowing the ribbon to bond to coated paper — something full resin ribbons do not do reliably.

What Wax-Resin Ribbon Is Right For

Wax-resin is the right choice when wax doesn't provide enough durability but full resin is more than the application requires — and that middle ground covers a significant portion of real-world labeling applications. Labels that will be scanned multiple times, labels exposed to light moisture or cleaning agents, outdoor labels on paper stock, and labels on matte synthetic materials all benefit from the improved durability of wax-resin at a cost point well below full resin.

Appropriate wax-resin applications: Labels repeatedly scanned in high-traffic locations (shelf and pallet labels in busy distribution centers), outdoor labeling on coated paper where moderate weather exposure is expected, chemical drum labeling where labels may encounter splash exposure to moderate chemicals, matte synthetic label applications where wax won't bond reliably, labels subject to abrasion from handling or equipment contact, manufacturing floor labels on coated paper that need to survive a production shift.

Where wax-resin reaches its limits: Applications requiring resistance to harsh chemical immersion, sustained outdoor exposure to UV and weather over months or years, high-gloss synthetic label facestocks (polyester, vinyl) where only full resin bonds properly, and high-temperature environments above approximately 200°F (93°C).

Full Resin Ribbon: Maximum Durability on Synthetic Materials

The Chemistry

Full resin ribbons use polymer resin compounds — typically polyester or polyamide-based — as the binder with little or no wax content. Resin ink layers have a significantly higher melting point than wax or wax-resin formulations, which requires higher printhead temperatures to transfer. Once cooled, the resin ink layer is extremely hard, chemically inert to most solvents and acids, and capable of withstanding temperatures that would liquify wax-based inks.

The critical compatibility requirement for full resin ribbon is the label facestock. Resin ink fuses into the surface of gloss synthetic materials — polyester, vinyl, polypropylene — creating a bond that is essentially part of the facestock itself. On paper, this fusion doesn't occur: resin ink sits on top of a paper surface without mechanical bonding, producing an image that looks acceptable but scratches off with minimal force. Full resin ribbon on paper is a common and costly mistake — the ink layer simply isn't compatible with the substrate.

What Full Resin Ribbon Is Right For

Full resin is the correct choice whenever the label facestock is a gloss synthetic material and/or whenever the application involves exposure to harsh chemicals, extreme temperatures, prolonged outdoor UV exposure, or compliance requirements (such as UL 969 recognition) that mandate a specific ribbon-label system certification.

Appropriate full resin applications: Gloss polyester asset tags for long-term outdoor or industrial environments, automotive and electronic component labels on polyester that must survive oils, solvents, and high heat, chemical drum and hazmat labels requiring resistance to aggressive chemicals, laboratory specimen labels exposed to cryogenic temperatures or sterilization processes, compliance labels requiring UL/cUL or CSA recognition, outdoor labels on synthetic stock with multi-year service life requirements, PCB and circuit board identification on polyimide substrates.

The printhead consideration: Full resin ribbon requires higher printhead temperatures than wax or wax-resin. Running resin ribbon on a printer configured for wax will produce faint, incomplete images. Running resin ribbon at appropriate settings produces the sharpest possible image — the hard, smooth resin surface yields exceptional edge definition on small fonts, rotated barcodes, and high-density 2D codes. For applications requiring high-resolution print quality on synthetic materials, full resin delivers superior image fidelity compared to wax-resin.

The Decision Matrix: Choosing the Right Ribbon

The four questions that determine which ribbon type is right for your application:

Common Mismatches and What They Look Like

Most ribbon selection errors follow predictable patterns. Recognizing these symptoms in your current operation often reveals a mismatch that's been quietly degrading label performance without anyone identifying the root cause:

Labels smear when handled shortly after printing. Almost always a wax ribbon on a synthetic facestock, or a wax ribbon in an application involving contact with skin oils or light solvents. The ink layer isn't hard enough for the surface it's on. Solution: step up to wax-resin or confirm the label facestock is actually paper.

Images print faint or incomplete on synthetic labels. Wax ribbon on a gloss synthetic facestock. The wax isn't bonding to the smooth, non-porous surface — it's sitting on top without adhesion. The image appears to print but rubs off with finger pressure. Solution: switch to full resin ribbon, which fuses into the synthetic surface rather than sitting on it.

Barcodes scan inconsistently in applications involving cleaning or moisture. Wax ribbon in an environment where labels are exposed to cleaning agents or high humidity. The wax ink layer is dissolving or softening. Solution: step up to wax-resin or full resin depending on label facestock and chemical severity.

Resin ribbon producing faint images or ribbon wrinkle on paper labels. Full resin ribbon run on paper labels. Two problems: the resin isn't bonding to paper without mechanical interlocking, and the higher print temperature required for resin may be causing ribbon wrinkle on paper stock that isn't designed for resin printing temperatures. Solution: switch to wax or wax-resin for paper applications.

Premature printhead wear with wax ribbon. Some lower-quality wax ribbons have abrasive ink formulations that accelerate printhead element wear. Zebra's certified ribbon portfolio is specifically formulated and tested to minimize printhead abrasion — this is one reason why matching ribbon brand to printer brand matters beyond just print quality.

Frequently Asked Questions: Thermal Transfer Ribbon

Can I use any ribbon in any thermal transfer printer?

Mechanically, most standard ribbons fit most thermal transfer printers of the appropriate core size. The question is compatibility between ribbon type, label facestock, and printer configuration. Resin ribbon requires higher printhead temperatures that need to be dialed in for the specific ribbon-label combination. Using a ribbon not tested for your printer can also accelerate printhead wear. Zebra's certified ribbon portfolio is the lowest-risk choice for Zebra printers — the ribbons are tested on Zebra hardware and optimized to minimize wear.

We're running wax-resin on everything. Is that a reasonable approach?

It's a common simplification and often a reasonable one for operations that want to avoid managing multiple ribbon SKUs. Wax-resin on coated paper delivers adequate performance for most standard indoor applications, and it handles light environmental exposure that would defeat pure wax. The tradeoff is cost — you're paying for durability you don't need in applications where wax would be sufficient. And wax-resin still won't perform correctly on gloss synthetic labels, where resin is required. If your operation runs a mix of paper and gloss synthetic labels, you still need two ribbon specifications regardless.

How do I know what facestock my current labels use?

The fastest test: try to tear a label from its liner. Paper tears easily with a ragged edge. Synthetic film stretches or tears cleanly without the fibrous tear pattern of paper. A gloss finish that feels like plastic film is almost certainly polyester or polypropylene — a resin ribbon application. If you're unsure, the label's part number or manufacturer data sheet will specify the facestock material. Advanced Automation can help confirm the right ribbon specification if you provide the label part number.

Does ribbon type affect print speed?

Yes, modestly. Wax ribbons transfer at lower temperatures and typically run at higher print speeds without quality degradation. Resin ribbons require higher temperatures and sometimes benefit from slightly reduced print speed to ensure complete ink transfer on demanding synthetic facestocks. In practice, industrial printers running Zebra certified ribbon at standard settings will produce acceptable output at normal print speeds across all ribbon types — the speed difference is more relevant for very high-speed print-and-apply applications where settings optimization matters.

Our labels are failing in the field and we're not sure if it's the ribbon or the label material. How do we diagnose it?

The fastest diagnostic: try to rub the printed image with your fingernail or a clean solvent wipe. If the image rubs off on paper labels, suspect wax ribbon in an abrasive environment. If the image rubs off on synthetic labels, suspect wax or wax-resin ribbon where resin is required. If the image stays but the label itself is peeling, the adhesive specification is the issue, not the ribbon. If barcodes scan correctly fresh off the printer but fail after environmental exposure, chemical degradation of the ink layer is the likely cause — step up in ribbon durability relative to your current specification. Contact our team with the label part number, ribbon part number, and failure description for a specific recommendation.

Getting the ribbon-to-label match right isn't complicated once you know what to look for — but the wrong combination costs you labels, printhead life, and field credibility. If you're dealing with a specific failure you can't pin down, or just want a second set of eyes on your current ribbon and label spec, our team is happy to work through it with you. We've been helping businesses dial in their thermal transfer setups for over 30 years across virtually every industry and application. Fill out the form below and let's make sure you're running the right combination for your operation.
