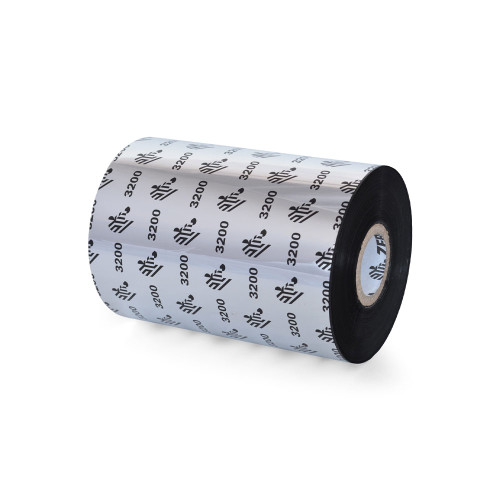

03200BK11030 Zebra 3200 Ribbon

Zebra 4.33" x 984' 3200 Wax/Resin Ribbon (Case) - 03200BK11030

Part #:
03200BK11030
Product Description
Zebra, consumables, 3200 wax/resin ribbon, 110MM X 300M, 4.33" X 984', 1" Core, 6 RPC, priced per case
Supply Chain Constraints
Avoid Rising Prices & Long Delays >> Learn More
Price: $151.11

Quantity Discounts

See Pricing

Save 20%

and receive item sooner

Show Me How

Huge Inventory / Fast Shipping

Easy 30 Day Return Policy

Secured Transaction

Discover the
Advanced Automation Difference!

Description

03200BK11030 | Zebra 3200 Premium Wax/Resin Ribbon — 1" Core Chemical-Resistant Ribbon for Zebra Tabletop Printers

The Zebra 3200 Premium Wax/Resin ribbon is a high-performance thermal transfer ribbon on a 1-inch core for Zebra tabletop and industrial printers, including the ZT200, ZT400, ZT500, and ZT600 series and ZE500 print engines. It combines outstanding print quality with chemical and solvent resistance, and it is UL certified when paired with specific Zebra label materials.

On Zebra coated paper and matte synthetic label stocks, the 3200 resists smearing and scratching, giving labels staying power and durability in harsh environments. It is intended for manufacturers, chemical producers, and operations teams that need labels to stay readable after exposure to solvents, abrasion, or moisture.


Key Features and Benefits of the Zebra 3200 Ribbon

  • Chemical and solvent resistance: Keeps printed labels legible after contact with solvents and chemicals.
  • Smear and scratch resistance: Holds up on labels subject to abrasion or friction.
  • Higher heat tolerance: Zebra notes better resistance to higher temperatures than conventional wax/resin ribbons.
  • Outstanding print quality: Crisp text and barcodes from a premium wax/resin formulation.
  • UL recognized combinations: UL recognized with several Zebra Z-Xtreme and Z-Supreme label materials.
  • IR and visible-light scanning: Printed barcodes scan with both infrared and visible-light scanners.
  • 1-inch core for tabletop printers: Fits Zebra ZT-series, 220Xi4, and ZE500-series printers that use 1" core ribbons.

Zebra 3200 Wax/Resin Ribbon (03200BK11030) - Product Specifications

  • Print Method: Thermal transfer
  • Ink Formulation: Wax/resin
  • Color: Black
  • Base Film Material: Polyester
  • Base Film Caliper: 4.5 microns
  • Total Caliper: 8.6 microns ±10%
  • Scanning Capabilities: IR and visible light
  • Core Size: 1 in.
  • Format: Roll for Zebra tabletop and industrial printers
  • Width and Length: 4.33" x 984'
  • Recommended Storage: 72°F at 50% RH
  • Expected Shelf Life: 1 year
  • Sample Ribbon for Testing: 03200BK08005

How the 3200 Performs on Coated Paper and Synthetic Labels

The 3200 is formulated for Zebra coated paper and matte synthetic label stocks. On those materials, the wax/resin ink bonds well enough to resist smears and scratches, so barcodes and text stay intact through handling, shipping, and harsh conditions.

That durability makes it a step up from conventional wax/resin ribbons for labels that see chemicals, abrasion, or moisture. For applications that require certification, the 3200 is UL recognized with Z-Xtreme 4000T White and Silver, Z-Xtreme 4000T High-Tack White and Silver, Z-Xtreme 2000T White, Silver, and Clear, and Z-Supreme 3000T White.


Applications for the Zebra 3200 Wax/Resin Ribbon

  • Labels exposed to solvents and chemicals
  • Labels subject to abrasion or friction
  • Outdoor labeling in extreme environments
  • Chemical drum labeling
  • Labels exposed to water, steam, alkali, or acid solutions

Compatibility, Configurations, and Ordering

This 1-inch core 3200 ribbon fits the following Zebra printers: 220Xi4, ZE500-4, ZE500-6, ZE500R, ZE511-4, ZE511R, ZE521-6, ZE521R, ZT111, ZT210 Series, ZT211, ZT220, ZT230, ZT231, ZT231R Series, ZT410, ZT411, ZT411R, ZT420, ZT421 Series, ZT421R Series, ZT510, ZT610, ZT610R, ZT620, ZT620R. Ribbon width and length vary by SKU, so select the part number that matches your printer model and label width.

For best results, pair it with Zebra coated paper or matte synthetic labels. To test before committing to production, order sample ribbon 03200BK08005. Store ribbons at 72°F and 50% relative humidity and use within the one-year expected shelf life.


Related Products


FAQ: Zebra 3200 Wax/Resin Ribbon

What is the Zebra 3200 ribbon?
It is a premium wax/resin thermal transfer ribbon that delivers outstanding print quality with chemical and solvent resistance.

Which Zebra printers does the 1" core 3200 ribbon fit?
Zebra tabletop and industrial printers using 1-inch core ribbons, including the 220Xi4, ZE500 and ZE511/ZE521 series, ZT111, and ZT200, ZT400, ZT500, and ZT600 series models.

Which label materials work best with it?
Zebra coated paper and matte synthetic label stocks.

Is the 3200 UL certified?
Yes. It is UL recognized with Z-Xtreme 4000T, Z-Xtreme 2000T, and Z-Supreme 3000T label materials in specific colors.

Can barcodes printed with it be scanned by IR scanners?
Yes. It supports IR and visible-light scanning.

Is a sample available?
Yes. Order sample ribbon 03200BK08005 for testing.

Detailed Specs

Product Family
3200
MFG Part Number
03200BK11030
Product Type
Ribbon
Ribbon Width
4.33"
Ribbon Length
984'
Core Size
1" Core
Color
Black
Format
Roll
Ribbon Type
Wax/Resin
Coated Side
Coated Side Out (CSO)
Sold By
Case
Roll Weight
5.4
Case Quantity
6
Case Weight
5.4
