Magnetic Rack Labels: When They Make Sense and When Standard Adhesive Is Still the Right Call

By Advanced Automation, Inc.  |  Warehouse Labels  |  Magnetic Rack Label Guide

Rack labeling is one of those things that doesn't seem like a strategic decision until you're three re-slots in and you've spent more hours scraping labels off beams than you care to admit. The right label type for your rack depends almost entirely on one question: how often do your locations change?

What Is a Magnetic Rack Label?

A magnetic rack label is a printed barcode label with a magnet backing instead of an adhesive backing. It sticks to steel rack beams through magnetic force rather than glue. Pull it off and the beam surface is clean. Move it to a new location, it holds just as well as it did before. No residue, no scraping, no damage to the beam surface.

Magnetic labels are printed the same way as any other rack label, on a thermal transfer printer using the same label design and barcode format your WMS already uses. The only difference is the backing material. From a scanning and data perspective, nothing changes. From a re-labeling perspective, everything changes.

When Magnetic Labels Make Sense

Your warehouse re-slots frequently

This is the primary use case. If your operation regularly moves products between locations, adjusts slot assignments by season, or reorganizes the floor for operational efficiency, adhesive labels become a cost center. Each re-slot requires scraping old labels, cleaning adhesive residue, printing new labels, and applying them. With magnetic labels the process is: pull the old label, move it or replace it, done. For facilities that re-slot even a few hundred locations a year, the labor savings alone justify the higher upfront cost of magnetic labels within the first couple of cycles.

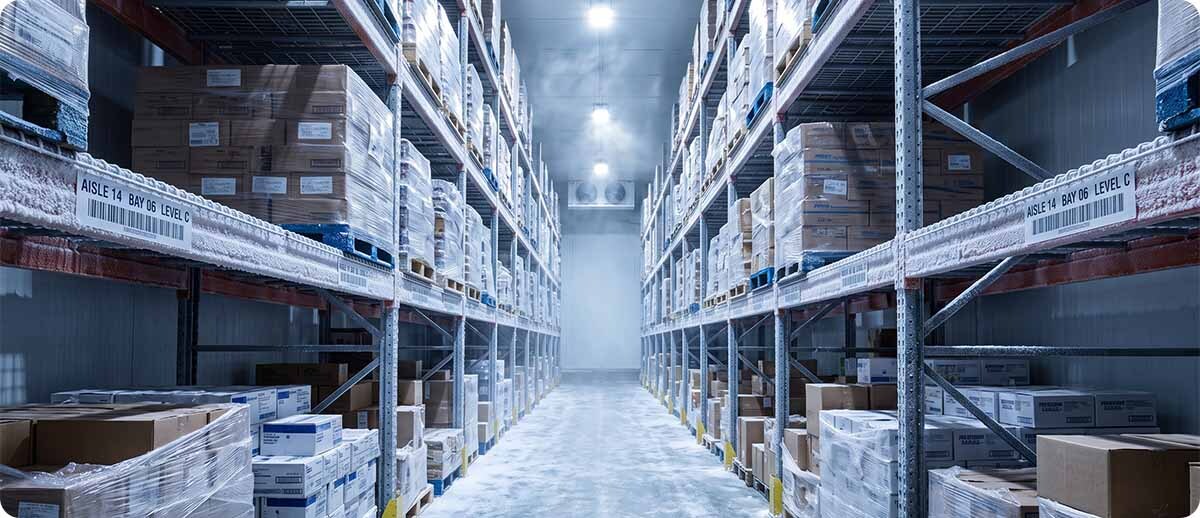

Cold storage and freezer environments

Adhesive labels in cold storage are a known problem. Standard adhesives fail at low temperatures. Freezer-grade adhesives help but still have limits, especially on surfaces that cycle between temperatures when product is added and removed. Magnetic labels have no adhesive at all, which means temperature has no effect on their ability to stay on the beam. For freezer and cold chain warehouses, magnetic is often the most reliable long-term labeling solution regardless of re-slot frequency.

Long label lifespan requirements

Magnetic rack labels, when kept intact, have a useful lifespan of 15 to 20 years. The label face is the consumable part. As long as the printed face remains readable and the magnet backing retains its strength, the label keeps working. For operations that want to avoid periodic wholesale rack re-labeling projects, a magnetic label installed correctly is essentially permanent until the barcode itself wears out.

When Adhesive Labels Are Still the Right Call

If your rack locations are fixed and don't change, a standard adhesive rack label is simpler and cheaper. Magnetic labels cost more per label than adhesive labels. If you're labeling a static warehouse where locations don't move, you pay a premium for flexibility you're not using. Standard permanent adhesive labels on steel beams, applied correctly, hold reliably for years in a stable environment. The investment in magnetic labels only pays off when the flexibility gets used.

Magnetic labels are also susceptible to being knocked off by forklift contact, since there's no adhesive holding them permanently in place. In high-traffic aisles where lift equipment regularly brushes rack uprights or beams, a knocked label that goes unnoticed creates an inventory accuracy problem. Standard adhesive labels stay put regardless of incidental contact.

The Cost Reality

Magnetic labels cost more per label upfront. The ROI comes from labor savings on re-labeling cycles and from avoiding the consumable cost of replacing adhesive labels every time a location changes. For a warehouse that re-slots 500 locations twice a year, the math on labor hours saved vs the premium on magnetic labels typically favors magnetic by year two or three and continues paying off for the remaining 15-plus year lifespan of the label.

The calculation is straightforward: estimate how many labels you re-slot per year, multiply by your average labor time per re-label event including scraping and cleaning, multiply by your labor rate. That's your annual re-labeling labor cost with adhesive labels. Compare it to the premium cost of magnetic labels for the same positions. If the premium pays off within two to three years and the labels last 15, the decision usually makes itself.

Quick Questions

Can magnetic labels be printed on our existing thermal transfer printer?

Yes. Magnetic rack labels use standard thermal transfer label stock on the print face. They print on the same printers using the same ribbon and the same label design as your current rack labels. The magnet backing is part of the label construction, not something added after printing. You order magnetic labels the same way you order any other label, specify your size, your barcode format, and magnetic backing, and print them on your existing equipment.

Do magnetic labels work on all rack types?

Magnetic labels work on steel rack beams and uprights, which covers the vast majority of standard pallet rack. They don't work on aluminum or non-ferrous metal racks, wood shelving, or any non-magnetic surface. If your racks are standard steel selective pallet rack, drive-in rack, or push-back rack, magnetic labels will adhere properly. If you're not sure whether your rack surface is magnetic, a simple test with any small magnet tells you immediately.

What happens when a magnetic label gets knocked off by a forklift?

If the label face is undamaged it can be picked up and put back on the beam. This is one of the advantages of magnetic labels. A knocked adhesive label is destroyed and requires replacement. A knocked magnetic label, as long as the face is intact, is reusable. The catch is that a label on the floor that doesn't get noticed and replaced promptly creates a location accuracy gap. In high-traffic aisles where forklift contact is frequent, periodic label audits as part of shift checks are a reasonable operational addition.
