Fanfold vs. Roll Labels: Fewer Reloads for Busy Shippers

By Advanced Automation, Inc.  |  Label Formats  |  Fanfold vs. Roll Labels Guide

This isn't a complicated topic but it's one that most operations never revisit after their initial printer setup. They ordered roll labels because that's what came with the printer, and they've been changing rolls ever since without asking whether a different format would reduce that friction. Here is the honest comparison.

What Is the Actual Difference Between Fanfold and Roll?

Same label, different format

Roll labels are wound on a cardboard core and load inside the printer's media compartment. The roll unwinds as labels are printed and the core sits in the printer's roll holder. When the roll runs out, you open the printer, remove the empty core, and load a new roll.

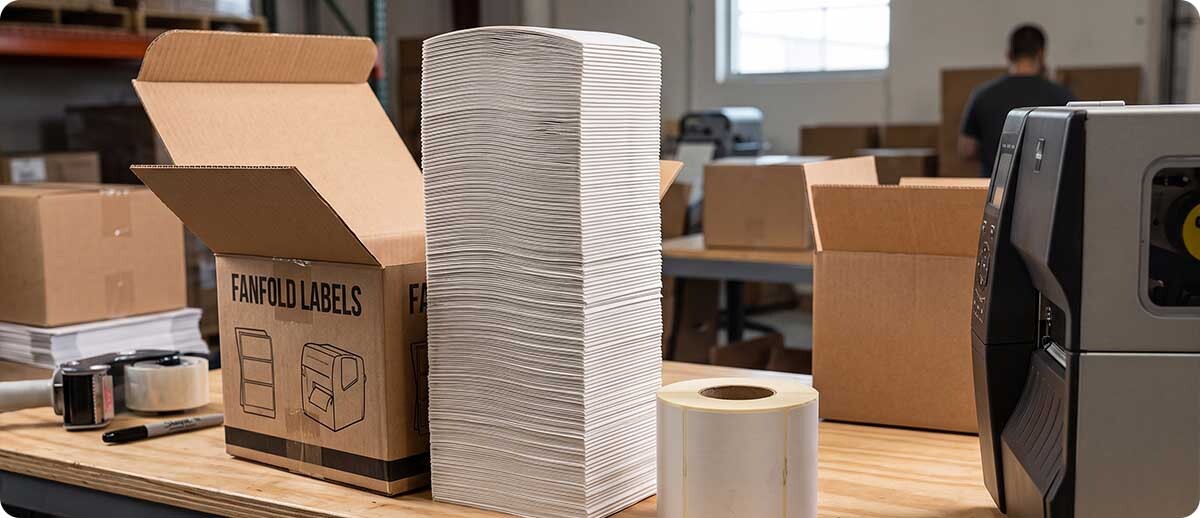

Fanfold labels are the same media folded in a continuous accordion stack, perforated between labels, and packed in a box. Instead of sitting inside the printer, the fanfold stack sits in a box beside or below the printer and feeds through the rear media input slot. The printer draws labels from the stack continuously. When the stack runs low, you add more fanfold from the next box without opening the printer or interrupting the print job in most cases.

The label itself is identical. Same size, same material, same adhesive, same print quality. The only difference is how the media is packaged and how it feeds into the printer.

Why Fanfold Reduces Reloads for Busy Shippers

How many more labels does fanfold hold vs a roll?

A standard 4x6 roll label on a 1-inch core with a 5-inch outer diameter holds approximately 475 labels. The same 4x6 label in fanfold format holds 2,500 labels per stack in AA's catalog. That's more than five times the label supply per reload event. For a shipping station printing 1,000 labels per shift, a roll requires two or three reload stops per shift. The same station on fanfold requires no reload within the shift if the stack is topped up at the start.

The math changes if the printer has a larger roll capacity. Industrial printers with 3-inch cores and 8-inch outer diameters hold around 950 labels per roll, which cuts the roll reload frequency roughly in half compared to a desktop roll. Fanfold still holds more per supply event than even an industrial roll, and the external feed position means the supply can be a much larger stack than any roll that physically fits inside a printer.

What does reducing reloads actually save in a high-volume shipping operation?

Each roll change takes a worker off the task they were doing, requires them to locate a new roll, load it correctly, run a test label, and resume. In a shipping environment where the worker is also packing, scanning, and staging shipments, a roll change is a 2 to 4 minute disruption depending on how the supplies are organized relative to the printer. Three roll changes per shift across a fleet of five shipping stations is 15 disruption events per shift and 30 to 60 minutes of cumulative interruption time that doesn't show up on any labor report as a productivity loss but is real.

For operations running multiple shifts and multiple stations, switching to fanfold and topping up at shift change rather than reloading during the shift converts most of that interruption time into productive time. The label cost per unit between fanfold and roll is typically similar for the same material, so the switch is primarily a workflow improvement rather than a cost trade-off.

When Roll Labels Are Still the Right Choice

Low-volume or intermittent printing. If a shipping station prints 50 to 100 labels per shift, a roll lasts most of the day and reload frequency isn't a meaningful operational friction. The workflow benefit of fanfold doesn't pay off at low volumes because the problem it solves isn't a real problem at that scale.

Mobile printing. Mobile printers worn on a belt or mounted on a vehicle use roll labels because they don't have an external feed mechanism for a fanfold stack. Fanfold is a stationary printer format.

The printer doesn't support rear fanfold feed. Most modern Zebra and Honeywell industrial and desktop printers support fanfold through a rear media slot. Some older or compact models don't have a rear feed path. Confirm your printer supports fanfold before ordering. For Zebra ZT series, ZD series, and most Honeywell industrial printers, fanfold support is standard.

Storage space at the printer station is very limited. Fanfold stacks in boxes take more floor space at the printer station than a cabinet of rolls. If the shipping station has very tight space, a roll organized in a nearby cabinet may be more practical than a fanfold box on the floor beside the printer.

The Quick Decision

Fanfold Labels at Advanced Automation

AA carries fanfold labels across multiple sizes, materials, and brands including Zebra, Honeywell, and AA's own alternative supply line. Common configurations in the catalog include:

Quick Questions

Does our Zebra ZT411 support fanfold feed?

Yes. The ZT411 supports fanfold media through its rear media feed slot. The stack sits in a box behind or below the printer and feeds continuously through the rear slot. Most Zebra ZT-series and ZD-series industrial and desktop printers support fanfold this way. If you're not sure whether your specific printer model has a rear feed path, check the media specifications section of the user guide or contact us with your printer model and we can confirm before you order.

Do we need to recalibrate the printer when switching from roll to fanfold?

If the label size and material are the same between your current roll and the fanfold you're switching to, a recalibration is typically not needed since the printer's media settings for that label type don't change. Run a media calibration after loading the fanfold for the first time to confirm the printer is detecting the label gaps correctly. For most operations switching from the same label size and material in roll format to fanfold format, the calibration takes about a minute and the printer resumes normal operation.

Is fanfold more expensive than the same label in roll format?

The per-label cost between fanfold and roll for the same material is typically comparable. The case quantity and packaging format differ, so direct price comparisons need to be made on a per-label basis rather than per case. For most standard thermal and thermal transfer paper label materials, fanfold doesn't carry a meaningful premium over roll. For specialty materials the comparison varies by specific product. If you want a side-by-side per-label cost comparison for your specific label size and material, contact us and we can pull both options.

If you want to confirm which fanfold configuration matches your current roll label and your printer model before switching, fill out the form below. We can match your existing label spec to the right fanfold equivalent and confirm printer compatibility before you commit to a case purchase.
