By Advanced Automation, Inc.  |  Warehouse Operations  |  Barcode Data Accuracy Guide

Inventory accuracy is one of the most researched metrics in warehouse operations and one of the most consistently underperformed. Studies on warehouse inventory accuracy consistently find that operations relying on manual data entry or poorly maintained scanning workflows achieve accuracy rates in the 63 to 85 percent range. Operations with well-implemented barcode scanning achieve accuracy rates of 95 to 99.9 percent. That gap does not happen because some warehouses have better workers. It happens because the sources of barcode data error are specific, predictable, and largely preventable — and the operations at the high end of accuracy have identified and systematically addressed them.

The downstream cost of inaccurate inventory is not limited to miscounted stock. It includes stockouts on items that show as available, excess inventory on items that show as short, incorrect picks that generate returns and chargebacks, compliance violations when supplier labeling requirements are not consistently met, and the fully loaded labor cost of the reconciliation and rework that inaccuracy generates. Research finds that even a 1 percent improvement in inventory accuracy produces measurable gains in gross margin, working capital, and cash flow. The operations that take barcode data quality seriously as a systematic practice rather than a reactive troubleshooting exercise consistently outperform those that do not.

The Ten Sources of Warehouse Barcode Data Error

The following ten error sources account for the large majority of barcode data problems in warehouse operations. They are not equally common or equally costly. The first two — manual entry and worn printheads — drive the highest volume of downstream data problems. The remaining eight are more situational but can dominate error rates in specific workflows or environments where they are present.

1. Manual Data Entry

Manual keyboard entry produces approximately one error per 300 keystrokes. In a warehouse processing thousands of transactions daily — receiving quantities, location codes, serial numbers, lot numbers — that error rate compounds into significant inventory drift within days. The errors are not immediately visible. A transposed digit in a receiving quantity creates phantom inventory that inflates available stock. A miskeyed SKU puts product in the wrong location in the WMS. A wrong lot number creates a traceability problem that surfaces only at a recall or audit.

The fix is replacing manual entry points with scan-based data capture wherever the workflow allows it. Handheld scanners and mobile computers capture data at the point of the transaction without the error rate of keyboard entry. For workflows where some manual entry is unavoidable — exception handling, data correction, quantity overrides — verification prompts that require the operator to confirm the entry before the transaction commits catch a meaningful percentage of errors before they enter the system.

The operations that have eliminated manual entry at receiving, putaway, picking, and shipping and retained it only for genuine exception workflows consistently report the sharpest improvements in inventory accuracy after implementation.

2. Worn or Damaged Printheads

A degraded printhead produces labels that look acceptable to the human eye but fail barcode verification testing. The bars are slightly lighter than specified, edges are soft rather than sharp, or a consistent streak from a compromised heating element reduces the contrast ratio in one section of every barcode. Workers scan, the code reads, and nobody notices that the first-scan failure rate on that printer's output has climbed from 0.5 percent to 4 percent. At 1,000 labels per shift, that is 35 additional scan failures per shift — 35 moments where a worker has to reposition, rescan, or manually intervene.

The more significant problem is the labels that fail in the field rather than at the point of printing. A label that reads adequately on a clean scanner under controlled conditions may fail on a handheld scanner under warehouse lighting, on a package that has been handled, or at a distance. Printhead wear is an ongoing process and the quality degradation is gradual. The correct practice is to track printhead life in linear inches printed, clean the printhead at every roll change, and operate at the lowest darkness setting that produces clean output rather than the highest setting that makes labels look visually dark.

Zebra warrants its replacement printheads for one year or one million linear inches, whichever comes first. Operations running high daily volumes should be budgeting printhead replacement as a scheduled maintenance cost rather than an emergency expense.

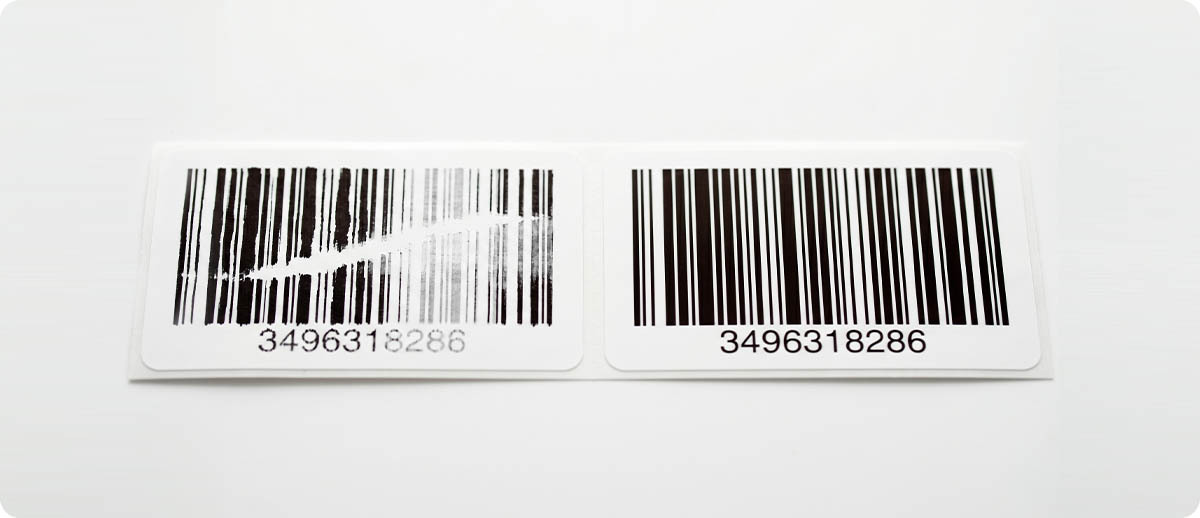

3. Poor Label Quality

Smudged, torn, or faded labels create scan failures at the point of use rather than at the point of printing. The failure is real and the inventory impact is real, but the root cause is a supplies and application decision made much earlier. Direct thermal labels fade when exposed to UV light, heat above approximately 150 degrees Fahrenheit, or contact with certain cleaning chemicals. Thermal transfer labels on paper stock degrade in wet or chemically active environments if the ribbon and facestock combination was not specified for those conditions.

The mismatch between label specification and application environment is the most common label quality failure, and it is entirely preventable. A label that was correctly specified for an indoor ambient receiving application is wrong for an outdoor staging area, a freezer, a wet food processing environment, or a chemical drum. The label looks the same at print time. It looks different 48 hours after application in the wrong environment.

Label quality problems that only appear after application are often attributed to handling or environmental conditions rather than to the original specification decision. The correct diagnostic is to identify where the label fails relative to its intended service life and environment, then specify the material, adhesive, and coating that actually survives those conditions.

4. Scanner Misconfiguration

A scanner configured for 1D linear codes does not reliably read QR codes or Data Matrix codes. A scanner set for retail UPCs may not correctly handle GS1-128 barcodes that encode lot number, expiration date, and quantity alongside the GTIN. Configuration errors most commonly occur when new devices are deployed without a full symbology review, when devices are reset to factory defaults after a firmware update, or when a new barcode format enters the operation because of a supplier or customer change and the existing scanner configuration was not updated to match.

The failure mode is subtle. The scanner appears to read but returns a partial string, the wrong data field, or a format the WMS does not recognize. Depending on how the WMS handles the malformed input, the transaction may fail visibly, fail silently, or create a data record with incorrect values. The third outcome is the most damaging because it produces no error at the time of scan and surfaces later as an inventory discrepancy with no clear origin.

The correct practice is to document the barcode symbologies and data formats in use at each scanning station, verify scanner configuration against that documentation when devices are deployed or reset, and test against actual production barcodes rather than test codes before clearing a device for production use.

5. Environmental Interference

Direct overhead lighting that creates specular glare on barcode surfaces, low-light areas in racking aisles, dust accumulation on scanner lenses, and temperature extremes in freezer or loading dock environments all reduce scan reliability without producing an obvious hardware failure. The scanner is working. The conditions make it work poorly. First-pass scan rates degrade, workers develop compensating habits that slow throughput, and the data from successful scans may still be unreliable if the scanner is misreading a glared or obscured barcode rather than failing to read it entirely.

Environmental interference requires matching the scanner specification to the actual conditions rather than the assumed conditions. A standard handheld scanner that performs excellently in a temperature-controlled pick zone may perform poorly in the same facility's outdoor receiving dock in direct summer sun. A scanner rated for freezer use maintains performance at -22 degrees Fahrenheit while a standard scanner at the same temperature produces inconsistent reads due to battery and optics effects. Specifying the right device for the actual environment is a one-time procurement decision that eliminates an ongoing source of scan error.

6. Incorrect Ribbon and Media Pairing

Thermal transfer printing produces reliable, durable output when the ribbon type matches the facestock chemistry and the darkness setting is calibrated for that combination. Wax ribbons transfer cleanly on coated paper stock at moderate print temperatures. They do not bond reliably to synthetic materials that require wax-resin or full resin ribbons for adequate ink adhesion. Running a wax ribbon on polyester label stock produces an image that looks adequate on the printer output but smears or flakes off within hours of application, because the ink is not bonded to the surface.

Ribbon and media mismatches frequently occur when one part of the supplies combination is changed without reviewing the other. A switch to a new label supplier that uses a slightly different facestock coating may require a darkness adjustment or a ribbon type change. A switch to synthetic labels for durability in a harsh environment requires a ribbon upgrade that was not in the original order. A scratch test — running a fingernail across a freshly printed label — is the fastest field check for adequate ribbon-to-media bond. If the image smears, the pairing is wrong regardless of what it looks like before the test.

7. Quiet Zone Violations

Every barcode requires a defined quiet zone — blank space on both sides of the symbol — that allows the scanner to identify where the code begins and ends. The minimum quiet zone for most common barcode symbologies is approximately 3.2mm on each side. When label design places graphics, text, or other elements inside the quiet zone, or when a label template is sized so tightly that the barcode has insufficient margin to the label edge, scanners produce inconsistent reads because they cannot reliably locate the code boundaries.

Quiet zone violations are a design and template problem, not a hardware or supplies problem. The labels print correctly and look correct. The barcode fails to read reliably on some scanners and in some orientations while reading on others. The failure pattern is inconsistent, which makes the root cause difficult to identify without a barcode verification tool that measures the quiet zone against the symbology standard. The fix is a template revision that either resizes the barcode to allow adequate margins or resizes the label to accommodate the required quiet zones around the existing barcode dimensions.

8. Barcode Format Conflicts

Warehouses that receive product from multiple suppliers encounter barcodes in multiple formats simultaneously. A receiving scanner that reads UPC-A from one supplier also encounters GS1-128 from another, Data Matrix from a pharmaceutical manufacturer, and Code 128 from a third-party logistics partner. When the scanner is configured to prioritize one symbology format, it may misidentify another format as a read error, skip it, or attempt to decode it as the wrong symbology and return incorrect data.

The specific failure with GS1-128 and GS1 Digital Link codes is worth noting because it is increasingly common as more suppliers adopt GS1 standards. These codes encode multiple data fields — GTIN, lot number, expiration date — in a structured format that the scanner must be configured to parse correctly. A scanner that reads the code but returns the full encoded string to the WMS without parsing the individual Application Identifiers produces a transaction record with the wrong data in every field. No scan error is reported. The data looks like a long number rather than an error, and the WMS may accept it or reject it depending on its input validation configuration.

9. Connectivity Issues

A wireless scanner that loses its connection to the WMS during a transaction does not always produce a visible error. Depending on how the device and the WMS handle the dropped connection, the scan may be lost silently, queued locally and replayed out of sequence when connection is restored, or transmitted twice if the device retransmits on reconnection. Any of these outcomes can create inventory discrepancies that are difficult to trace because the physical transaction occurred correctly — the worker scanned the item — but the data record is wrong, missing, or duplicated.

Connectivity issues are the error source most frequently misattributed to scanner hardware or WMS software problems. A scanner that produces intermittent errors in a specific area of the facility is almost always experiencing intermittent connectivity loss in that area, not a hardware failure. Mapping first-pass scan failure rates by physical location often reveals the coverage gap before any other diagnostic does. The fix is infrastructure-level — additional access points, better AP placement, or a network infrastructure upgrade — rather than device replacement.

10. Operator Training Gaps

Inconsistent scanning procedures produce inconsistent data. An operator who scans one unit and manually enters a quantity of ten creates a scan record that the WMS accepts as valid but that does not reflect actual item-level tracking. An operator who skips the location confirmation scan to save time produces pick records with no verified location, making exception resolution difficult when the next pick of that item comes from an empty location. An operator who has not been trained on the correct label to scan when a product carries multiple barcodes — a retail UPC and a warehouse barcode — may scan either one inconsistently, creating mismatched records across transaction types.

Training gaps compound during onboarding and high-turnover periods. The correct countermeasure is a combination of device-side confirmation prompts that verify each scan before allowing the workflow to advance, and process documentation that specifies exactly which label to scan at each transaction step. Devices that provide visual and audible confirmation of a successful scan reduce the rate of missed scans from operators who move too quickly to verify the read.

The Downstream Cost Framework: What Each Error Source Actually Costs

Understanding the error sources is the first half of the analysis. Connecting each error source to its specific downstream cost is the second half, and it is the part that makes the business case for systematic investment in barcode data quality rather than reactive troubleshooting.

The Systematic vs. Reactive Approach

Most operations manage barcode data errors reactively. A scan failure occurs, a worker resolves it, and the operation continues. This approach absorbs the immediate cost of the failure — the few seconds of extra scan time — but does not capture the cumulative cost of the pattern, the downstream inventory impact, or the root cause. The result is a steady-state error rate that the operation has learned to tolerate, with the costs distributed across labor, inventory discrepancies, and customer service in ways that are individually small enough not to trigger investigation.

The systematic approach treats first-pass scan rate as a tracked operational metric at the printer, scanner, and station level. A printer whose output drops from a 99.5 percent first-pass scan rate to a 96 percent first-pass scan rate over three months has developed a printhead or media quality problem that is identifiable and fixable before it reaches field failure rates. A scanning station that shows a 4 percent higher failure rate than adjacent stations in the same workflow has an environmental, configuration, or connectivity problem that is specific to that station.

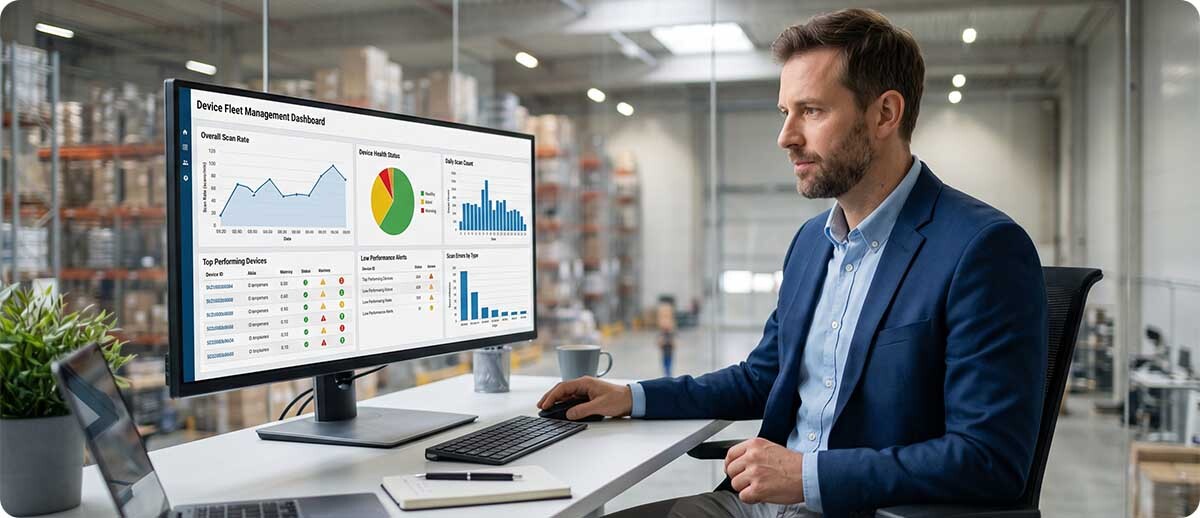

Zebra's VisibilityIQ platform, included with OneCare service contracts, provides fleet-level device health data that supports this kind of monitoring across a printer and scanner fleet without requiring manual tracking. Operations that implement systematic monitoring consistently achieve and maintain inventory accuracy rates in the 98 to 99.9 percent range. Operations that rely on reactive troubleshooting typically maintain accuracy in the 85 to 93 percent range and spend significantly more per year on reconciliation and exception resolution labor.

Frequently Asked Questions

How do we measure our current barcode data error rate without a dedicated verification system?

The most practical starting point is cycle count discrepancy rate by location and product category. If certain locations or product lines consistently show higher discrepancy rates at cycle count, the error is occurring at the transactions touching those items — receiving, putaway, picking, or shipping. Tracking which printer produces labels for those items and which scanning stations process those transactions narrows the source. Many WMS platforms log first-scan success versus rescan events; if yours does, pulling that data by station or device over a 30-day period gives a direct measure of where error rates are elevated.

We have good scan rates in the warehouse but our customers report scan failures on our labels. What causes that?

Scan failures that appear at the customer but not at the point of printing are almost always caused by one of three things. The first is printhead wear that produces labels that read on the printer's own scanner at close range but fail at the scanner types and distances used at the customer. The second is a quiet zone violation that reads inconsistently depending on the scanner model and orientation used. The third is a label material specification that works in your environment but degrades in transit or in the customer's environment. A barcode verifier that grades output against ISO/IEC standards will identify print quality issues before they reach your customers. If the grade is acceptable on fresh labels, the issue is environmental degradation in transit and the label material specification needs review.

Our inventory accuracy is around 92 to 94 percent. Is that typical and is it worth investing to improve it?

92 to 94 percent inventory accuracy is common in operations that have not systematically addressed barcode data quality. It is not a ceiling. Operations with well-maintained scanning equipment, correctly specified label media and ribbon, scan-based workflows at all transaction points, and systematic monitoring consistently achieve 98 to 99.9 percent. The financial case for improvement depends on your inventory value and throughput volume, but research consistently finds that even a 1 percent improvement in inventory accuracy produces measurable gains in working capital and margin through reduced safety stock, fewer emergency purchases, and lower exception resolution labor. For a $10 million inventory, a 6 percentage point accuracy improvement represents approximately $600,000 in inventory that can be removed from safety stock or correctly located rather than written off.

How often should we audit our scanning equipment and supplies for the error sources described above?

Printhead cleaning should happen at every roll change as a standard operating procedure, not as a periodic audit. Printhead replacement should be triggered by print quality metrics rather than a fixed schedule — the volume-based calculation is more accurate than a time interval. Scanner configuration should be reviewed any time a new barcode format or product type enters the operation. Label and ribbon specification should be reviewed when any supplies supplier or specification changes. Connectivity should be reviewed whenever first-pass scan rates degrade in a specific area of the facility. The most useful audit schedule is one that monitors the output metrics — first-pass scan rate, cycle count discrepancy rate — continuously and investigates when they degrade, rather than auditing inputs on a fixed calendar cycle.

Getting to and staying at 98 to 99 percent inventory accuracy requires addressing these error sources systematically rather than one incident at a time. If you want to work through which of these ten sources is most active in your specific operation and what the highest-impact fixes are, our team has been through this assessment with distribution, manufacturing, and 3PL operations across a range of sizes and complexity levels. Fill out the form below and let's identify where your barcode data quality gaps actually are.
