Brady Accessory - 65599
- Part #:
- 65599
Product Description

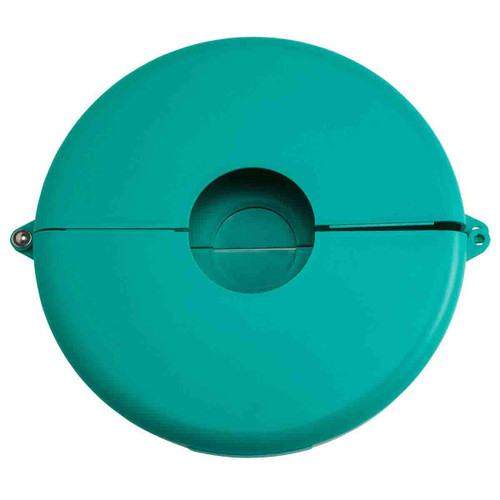

Gate Valve Lockout Device, Green, Fits Valve Handles Diameter 10 in to 13 in
30 Years of Service
Huge Inventory / Fast Shipping
Easy 30 Day Return Policy
Secured Transaction
Gate valve lockout devices deny access and cover the valve handle. This device's unique knockout center fits OS&Y or "rising stem" valves.
| Part Number | 65599 |
| Product Number | 65599 |
| UPC | 754473655990 |
| UOM | Each |
| Brand Name | Brady |
| Application | Lockout Tagout |
| Approval/Compliance (EMEA) | UL94 HB |
| Brady Material Number | LOTO-7 |
| Color | Green |
| Depth (imperial) | 3 in |
| Depth (metric) | 76.20 mm |
| Diameter (imperial) | 0.75 in |
| Diameter (metric) | 354.58 mm |
| Dimensions (imperial) | 14.31 in H x 15.95 in W x 0.75 in Dia x 3 in D |
| Dimensions (metric) | 405,10 mm (W) x 363,50 mm (H) x 354,58 mm (Dia) x 76,20 mm (D) |
| Enables Industry Compliance (North America) | OSHA 1910.147 |
| Gate Valve Lockout Type | Hinged |
| Height (imperial) | 14.31 in |
| Height (metric) | 363.50 mm |
| Hole Inside Diameter (imperial) | 4.11 in |
| Hole Inside Diameter (metric) | 104.50 mm |
| Industry | Beverage processing, Chemical, Automotive, Construction, Energy utilities, Food processing, Manufacturing, Oil & gas, Process, Pulp & paper |
| Labels Supplied | Yes |
| Material | Polypropylene |
| Maximum Number of Padlocks | 1 |
| Maximum Service Temperature (°C) | 150 °C |
| Maximum Service Temperature (°F) | 302 °F |
| Maximum Shackle Diameter (imperial) | 0.375 in |
| Maximum Shackle Diameter (metric) | 9.53 mm |
| Minimum Service Temperature (°C) | -40 °C |
| Minimum Service Temperature (°F) | -40 °F |
| Minimum Shackle Clearance (imperial) | 0.75 in |
| Minimum Shackle Clearance (metric) | 19.05 mm |
| Primary Noun, Basic Function.1 | Lockout Device |
| Rising Stem Knockout Hole Diameter (imperial) | 4.11 in |
| Rising Stem Knockout Hole Diameter (metric) | 104.39 mm |
| Risk Type | Mechanical Risk |
| SAP B-Number | LOTO-7 |
| SAP Local Description | GATE VALVE LOCKOUTS GVLO 10-13 GREEN |
| Service Temperature Range (°C) | -40 °C - 150 °C |
| Service Temperature Range (°F) | -40 °F - 302 °F |
| Text Language | English, French, Spanish |
| Text Legend | DANGER LOCKED OUT DO NOT REMOVE |
| Valve Wheel Diameter Range (imperial) | 10 - 13 in |
| Valve Wheel Diameter Range (metric) | 254.00 - 330.20 mm |
| Width (imperial) | 15.95 in |
| Width (metric) | 405.10 mm |
| Contains CA PROP 65 Substance | No - Does not contain |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Not Applicable |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
