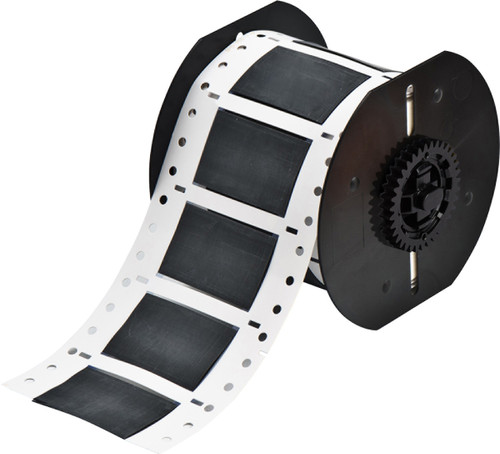

The B-344 PermaSleeve material is suitable for use in applications that require greater resistance to harsh chemicals such as fuel and high power cleaning solvents.
| Part Number | B33D-750-2-344BK |
| Product Number | 119071 |
| UPC | 662820982326 |
| UOM | Roll of 250 Each |
| Brand Name | Brady |
| Application | Wire and Cable Labeling |
| Approval/Compliance (EMEA) | SAE-AMS-DTL-23053/5 C (Class 1), SAE AS-81531, MIL-STD-202 Method 215K, UL224 |
| Brady Material Number | B-344 |
| Color | Black |
| Continuous or Die-cut | Die-cut |
| Diameter as Supplied (imperial) | 0.75 in |
| Diameter as Supplied (metric) | 19.05 mm |
| Dimensions (imperial) | 1.25 in H x 2 in W |
| Dimensions (metric) | 50,80 mm (W) x 31,75 mm (H) |
| Enables Industry Compliance (North America) | ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202, SAE-AMS-DTL-23053, SAE-AS-81531, UL Recognized |
| Height (imperial) | 1.25 in |
| Height (metric) | 31.75 mm |
| Industry Compliance MIL_STD | MIL-STD-202G, Method 215K |
| Industry Compliance UL | UL224 |
| Label Properties | Heat Shrink |
| Material | Heat-shrink Polyolefin |
| Material Properties | Flame-retardant, Heat-shrinkable |
| Material Type | Polyolefin |
| Maximum Service Temperature (°C) | 130.6 °C |
| Maximum Service Temperature (°F) | 267 °F |
| Maximum Wire Diameter (imperial) | 0.7 in |
| Maximum Wire Diameter (metric) | 17.78 mm |
| Maximum Wire Gauge | 0000 AWG |
| Minimum Service Temperature (°C) | -55 °C |
| Minimum Service Temperature (°F) | -67 °F |
| Minimum Wire Diameter (imperial) | 0.25 in |
| Minimum Wire Diameter (metric) | 6.35 mm |
| Minimum Wire Gauge | 6 AWG |
| Primary Noun, Basic Function.1 | Sleeve |
| Print Technology | Thermal Transfer |
| Printable Sides | Double-Side Printable |
| Printer Compatibility | BBP33, i3300, i5300 |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 250 |
| Quantity per Row | 1 |
| Recommended Ribbon | B30-R6700-WT |
| Recommended Ribbon Series | R6700 |
| Recovered Diameter (imperial) | 0.25 in |
| Recovered Diameter (metric) | 6.35 mm |
| Recovered Wall Thickness (imperial) | 0.025 in |
| Recovered Wall Thickness (metric) | 0.64 mm |
| Resistance Properties | Chemical-resistant, Corrosion-resistant, Humidity-resistant, Smear-resistant, UV-resistant, Weather-resistant |
| Ribbon Series | R6700 |
| Roll Width (imperial) | 2 in |
| Roll Width (metric) | 50.80 mm |
| SAP B-Number | B-344 |
| SAP Local Description | B33D-750-2-344BK |
| Service Temperature Range (°C) | -55 °C - 130.6 °C |
| Service Temperature Range (°F) | -67 °F - 267 °F |
| Shrink Ratio | 3:1 |
| Sleeve Size (imperial) | 0.75 in Dia x 2 in W |
| Sleeve Size (metric) | 19.05 mm Dia x 50.80 mm W |
| Sleeve Slits | No |
| Sleeve Width (imperial) | 2 in |
| Sleeve Width (metric) | 50.80 mm |
| Smart Cell | Yes |
| Trade Name | PermaSleeve |
| Vertical Repeat (imperial) | 1.625 in |
| Vertical Repeat (metric) | 41.28 mm |
| Web Width (imperial) | 3.49 in |
| Web Width (metric) | 88.65 mm |
| Width (imperial) | 2 in |
| Width (metric) | 50.80 mm |
| Wire Diameter Range (imperial) | 0.25 in to 0.7 in |
| Wire Diameter Range (metric) | 6.35 mm to 17.78 mm |
| Wire Gauge Range | 6 AWG - 0000 AWG |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
| CA Prop 65 Labeled? | Y |
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Substance (Y/N) | Y |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | No - Does not contain |
| DOT Hazardous Material | No = is not a DOT hazardous material |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
