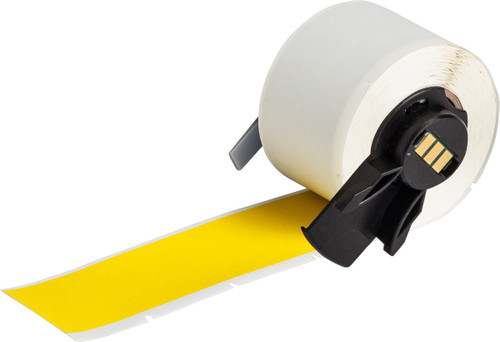

Heavy duty, high termperature, self-extinguishing wire and cable labels (B-437) are most commonly used by aerospace, defense and mass transit industries where resistance to water, oil and other fluids is required.
| Part Number | M6-41-437-YL-CM |
| Product Number | 174380 |
| UPC | 888434601952 |
| UOM | Roll of 400 Labels |
| Brand Name | Brady |
| Adhesive Type | Permanent Acrylic |
| Application | Component and Equipment Labeling, Electrical Labeling, Wire and Cable Labeling |
| Approval/Compliance (EMEA) | MIL-M-87958 Pressure Sensitive Adhesive Wire or Cable Marker and Identification specification |
| Average Outdoor Durability | Not Recommended |
| Brady Material Number | B-437 |
| Color | Yellow |
| Compatible Surface Types | High Surface Energy |
| Continuous or Die-cut | Die-cut |
| Corner Type | Rounded |
| Dimensions (imperial) | 1.812 in W x 50 ft L |
| Dimensions (metric) | 38,10 mm (W) x 15,24 m (L) |
| Enables Industry Compliance (North America) | ASTM D 1000, MIL-M-87958 |
| Finish | Matte |
| Indoor or Outdoor Use | Outdoor Use |
| Industry Compliance MIL_STD | MIL-M-87958 |
| Label Properties | Harsh Environment, Self-extinguishing |
| Label/Tape Size (imperial) | 1.812 in W x 50 ft L |
| Label/Tape Size (metric) | 46.02 mm W x 15.24 m L |
| Length (imperial) | 50 ft |
| Length (metric) | 15.24 m |
| Material | Polyvinylfluoride |
| Material Properties | Flame-retardant |
| Material Type | Polyvinylfluoride |
| Max. Lines of Text | 14 |
| Maximum Characters per Line | 50 |
| Maximum Service Temperature (°C) | 135 °C |
| Maximum Service Temperature (°F) | 275 °F |
| Minimum Service Temperature (°C) | -70 °C |
| Minimum Service Temperature (°F) | -94 °F |
| Performance Characteristics | Self-extinguishing/anti-flammability, Solvent/Chemical resistance, High heat resistance |
| Primary Noun, Basic Function.1 | Label |
| Print Technology | Thermal Transfer |
| Printer Compatibility | M610, M611, M710 (with media adapter), BMP61, BMP71 (with media adapter) |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 400 |
| Quantity per Row | 1 |
| Recommended Ribbon | M61-R4310, M7-R4300 |
| Recommended Ribbon Series | R4300 |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Humidity-resistant, UV-resistant, Weather-resistant |
| Ribbon Series | R4300, R6200 |
| Roll Length (imperial) | 50 ft |
| Roll Length (metric) | 15.24 m |
| Roll Width (imperial) | 1.812 in |
| Roll Width (metric) | 46.02 mm |
| SAP B-Number | B-437 |
| SAP Local Description | M6-41-437-YL-CM |
| Service Temperature Range (°C) | -70 °C - 135 °C |
| Service Temperature Range (°F) | -94 °F - 275 °F |
| Shape | Continuous |
| Smart Cell | Yes |
| Surface | For smooth & textured/rough surfaces |
| Thickness (imperial) | 0.0036 in |
| Thickness (metric) | 0.091 mm |
| Trade Name | Tedlar |
| Web Width (imperial) | 1.812 in |
| Web Width (metric) | 46.02 mm |
| Width (imperial) | 1.812 in |
| Width (metric) | 38.10 mm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
