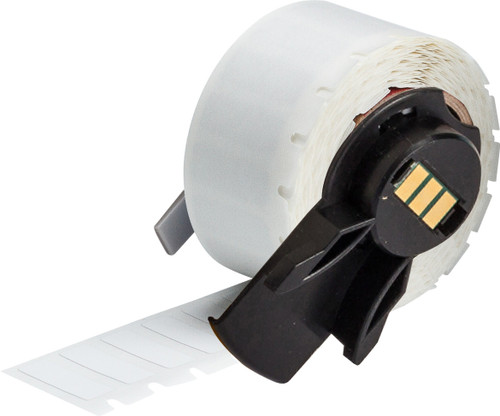

Heavy duty, high termperature, self-extinguishing wire and cable labels (B-437) are most commonly used by aerospace, defense and mass transit industries where resistance to water, oil and other fluids is required.
| Part Number | M6-10-437 |
| Product Number | 174174 |
| UPC | 888434599891 |
| UOM | Roll of 750 Labels |
| Brand Name | Brady |
| Adhesive Type | Permanent Acrylic |
| After Process | Yes, this material will work with this application |
| Application | Circuit Board Labeling, Component and Equipment Labeling, General Identification, Electrical Labeling, Wire and Cable Labeling |
| Approval/Compliance (EMEA) | MIL-M-87958 Pressure Sensitive Adhesive Wire or Cable Marker and Identification specification |
| Board Application | Through Hole Technology - Top, After Process |
| Brady Material Number | B-437 |
| Color | White |
| Compatible Surface Types | High Surface Energy |
| Continuous or Die-cut | Die-cut |
| Corner Type | Rounded |
| Dimensions (imperial) | 0.25 in H x 0.75 in W |
| Dimensions (metric) | 19,05 mm (W) x 6,35 mm (H) |
| Enables Industry Compliance (North America) | ASTM B 117, ASTM D 1000, ASTM D 2979, ASTM G 155, MIL-M-87958 |
| Finish | Matte |
| Height (imperial) | 0.25 in |
| Height (metric) | 6.35 mm |
| Indoor or Outdoor Use | Outdoor Use |
| Industry | Aerospace, Electrical, Voice & data communication |
| Industry Compliance MIL_STD | MIL-M-87958 |
| Label Properties | Harsh Environment, Self-extinguishing |
| Label/Tape Size (imperial) | 0.25 in H x 0.75 in W |
| Label/Tape Size (metric) | 6.35 mm H x 19.05 mm W |
| Material | Polyvinylfluoride |
| Material Properties | Flame-retardant |
| Material Type | Polyvinylfluoride |
| Max. Lines of Text | 2 |
| Maximum Characters per Line | 18 |
| Maximum Service Temperature (°C) | 135 °C |
| Maximum Service Temperature (°F) | 275 °F |
| Maximum Wire Diameter (imperial) | 0.201 in |
| Maximum Wire Diameter (metric) | 5.11 mm |
| Minimum Service Temperature (°C) | -70 °C |
| Minimum Service Temperature (°F) | -94 °F |
| Performance Characteristics | Self-extinguishing/anti-flammability, Solvent/Chemical resistance, High heat resistance |
| Primary Noun, Basic Function.1 | Label |
| Print Technology | Thermal Transfer |
| Printer Compatibility | M610, M611, M710 (with media adapter), BMP61, BMP71 (with media adapter) |
| Printer and Label Applications | Wire & Cable |
| Printer supply or Pre-printed | Printer supply |
| Quantity per Roll | 750 |
| Quantity per Row | 1 |
| Recommended Ribbon | M61-R4310, M7-R4300 |
| Recommended Ribbon Series | R4300 |
| Resistance Properties | Abrasion-resistant, Chemical-resistant, Corrosion-resistant, Humidity-resistant, UV-resistant, Weather-resistant |
| Ribbon Series | R4300, R6200 |
| SAP B-Number | B-437 |
| SAP Local Description | M6-10-437 |
| Service Temperature Range (°C) | -70 °C - 135 °C |
| Service Temperature Range (°F) | -94 °F - 275 °F |
| Shape | Rectangle |
| Smart Cell | Yes |
| Surface | For smooth & textured/rough surfaces |
| Surface Mount Technology SMT | No, this material does not work with this application |
| Thickness (imperial) | 0.0036 in |
| Thickness (metric) | 0.091 mm |
| Through Hole Technology | Top: Yes. In extreme high temperatures, testing of this material is recommended, Bottom: No |
| Total Quantity | 750 |
| Vertical Repeat (imperial) | 0.375 in |
| Vertical Repeat (metric) | 9.53 mm |
| Web Width (imperial) | 1.062 in |
| Web Width (metric) | 26.97 mm |
| Width (imperial) | 0.75 in |
| Width (metric) | 19.05 mm |
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance (Y/N) | N |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
