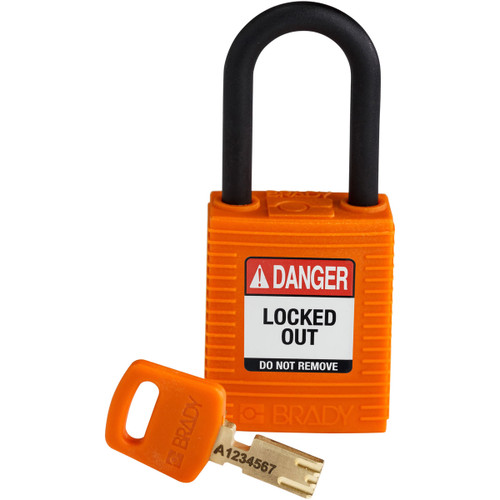

Stay ahead of technology. Brady SafeKey Lockout Padlocks, exclusively from Brady, provide ultimate key precision and advanced key security in your lockout program.
| Part Number | NYL-ORG-38PL-KD |
| Product Number | 150230 |
| UPC | 754473610456 |
| UOM | Each |
| Brand Name | Brady |
| Application | Lockout Tagout |
| Approval/Compliance (EMEA) | OSHA 29 CFR 1910.147 |
| Body Coating/Finish | Thermoplastic |
| Body Depth (imperial) | 0.75 in |
| Body Depth (metric) | 19.05 mm |
| Body Height (imperial) | 1.8 in |
| Body Height (metric) | 46.00 mm |
| Body Size (imperial) | 1.8 in H x 1.5 in W x 0.75 in D |
| Body Size (metric) | 46.00 mm H x 38.00 mm W x 19.05 mm D |
| Body Width (imperial) | 1.5 in |
| Body Width (metric) | 38.00 mm |
| Brady Material Number | LOTO-101 |
| Color | Orange |
| Conductive | No |
| Depth (metric) | 19.05 mm |
| Dimensions (metric) | 38,00 mm (W) x 84,00 mm (H) x 19,05 mm (D) |
| Enables Industry Compliance (North America) | OSHA 29 CFR 1910.147 |
| Engraving | Yes |
| Engraving Parameters | Engraving on front, back, sides & key |
| For Use With | Equipment Lockout |
| Header | DANGER |
| Height (metric) | 84.00 mm |
| Includes | (1) Padlock, (1) Key |
| Indoor or Outdoor Use | Indoor/Outdoor Use |
| Industry | Beverage processing, Chemical, Automotive, Construction, Energy utilities, Food processing, Manufacturing, Oil & gas, Process, Pulp & paper |
| Key Mechanism | SafeKey Linear Blade |
| Key Option | Keyed Different |
| Key Possibilities | KA (Keyed Alike), MK (Master Keyed), GMK (Grand Master Keyed), Custom Key Charting |
| Key-retaining | No |
| Labels Supplied | Yes |
| Material | Nylon |
| Material Properties | Non-conductive |
| Maximum Number of Different Keycodes | 100000 |
| Maximum Service Temperature (°C) | 121 °C |
| Maximum Service Temperature (°F) | 250 °F |
| Minimum Service Temperature (°C) | -26 °C |
| Minimum Service Temperature (°F) | -30 °F |
| Number of Keys Included | 1 |
| Number of Labels Included | 3 |
| Number of Pin Tumblers | 6 |
| Packaging | Individually Packaged |
| Padlock Body Material | Nylon |
| Padlock Body Type | Standard |
| Primary Noun, Basic Function.1 | Padlock |
| Product Regulations (EMEA) | ATEX standpoint |
| Reverse Legend | PROPERTY OF, PROPRIETE DE, PROPIEDAD DE |
| SAP Local Description | Nylon Padlock Org 38mm Pl Shkl, KD |
| Service Temperature Range (°C) | -26 °C - 121 °C |
| Service Temperature Range (°F) | -30 °F - 250 °F |
| Shackle Coating/Finish | Non-conductive Nylon |
| Shackle Diameter (imperial) | 0.25 in |
| Shackle Diameter (metric) | 6.35 mm |
| Shackle Horizontal Clearance (imperial) | 0.8 in |
| Shackle Horizontal Clearance (metric) | 20.32 mm |
| Shackle Material | Plastic |
| Shackle Type | Open Shackle |
| Shackle Vertical Clearance | 1.5 in |
| Shackle Vertical Clearance (metric) | 38.10 mm |
| Shackle Width (imperial) | 1.30 in |
| Shackle Width (metric) | 33.02 mm |
| Style | Standard |
| Text Language | English, French, Spanish |
| Text Legend | LOCKED OUT DO NOT REMOVE |
| Trade Name | SafeKey |
| Width (metric) | 38.00 mm |
| CA Prop 65 Label Warning | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| CA Prop 65 Labeled? | Y |
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Substance (Y/N) | Y |
| Contains CA PROP 65 Warning Type | Cancer and Reproductive Harm |
| Contains CA Prop 65 Cancer and Reproductive Harm Chemical | Lead |
| Contains Heavy Metal(s) | No - Does not contain, Yes - Lead |
| EU RoHS Compliance | Not Applicable |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
